FJ Dynamics RLM01 Robot Linemarker
£17,999.00 + VAT

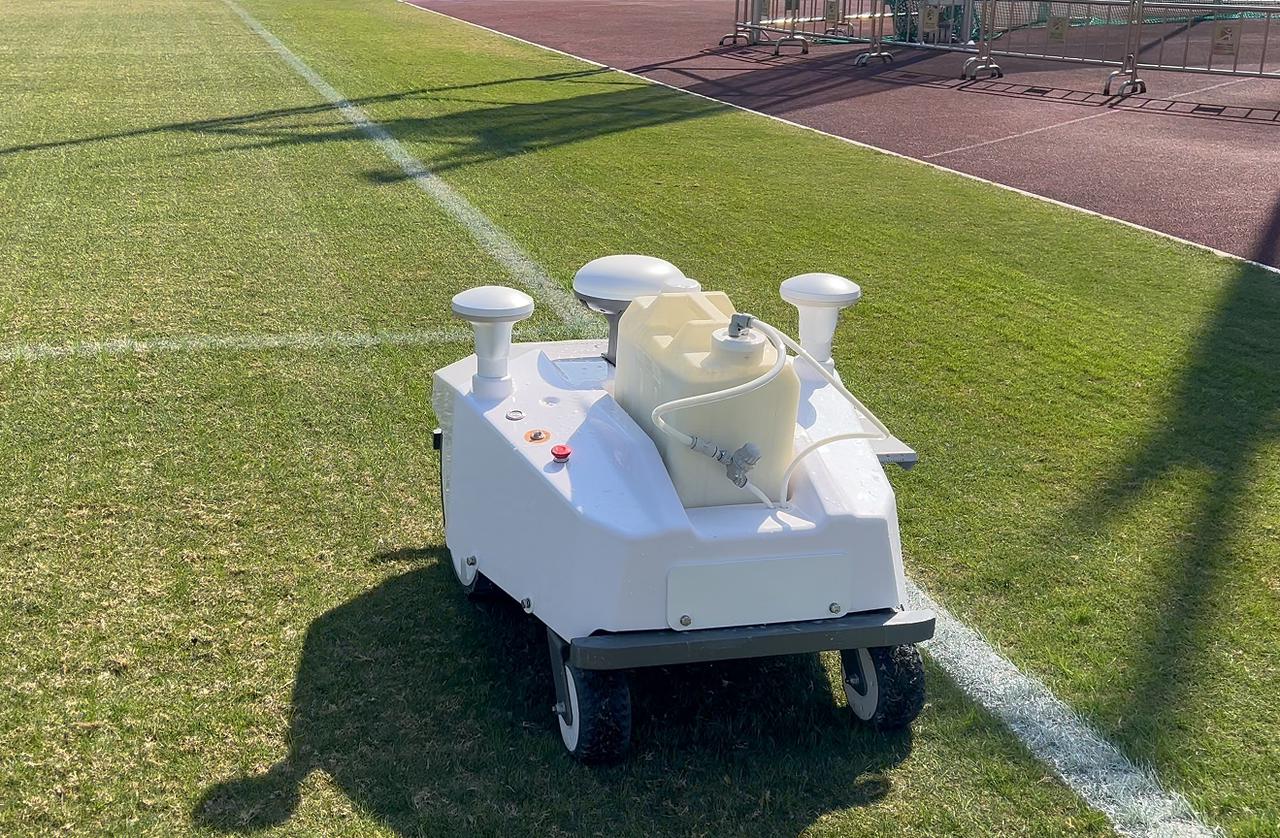

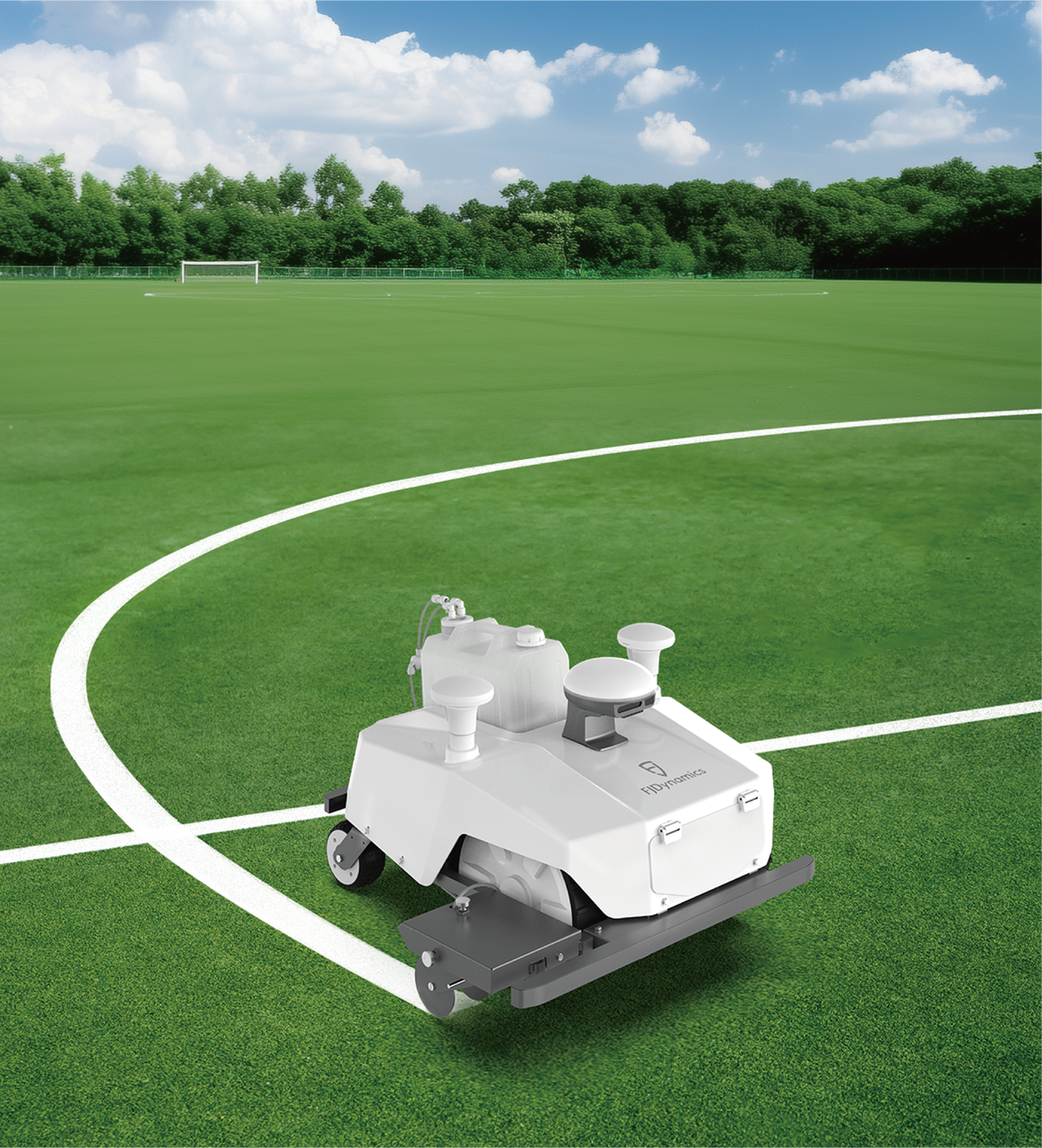

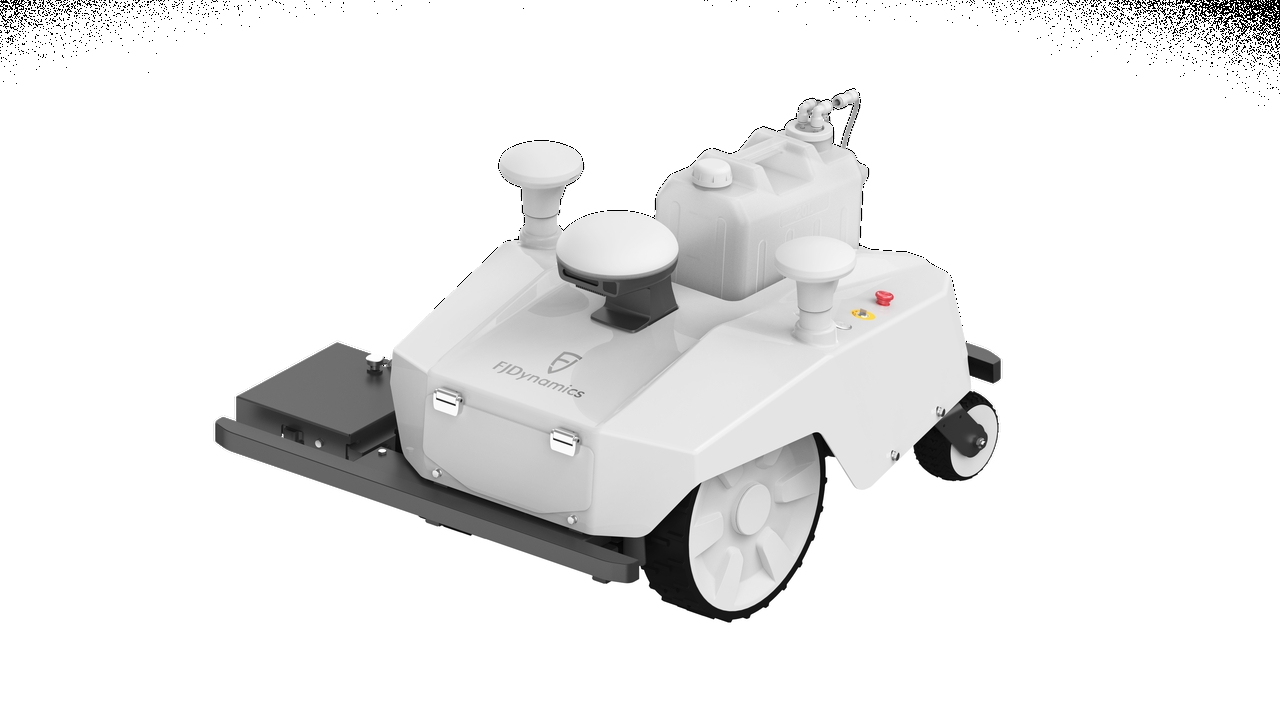

The FJD PaintMaster™ Pro RLM01 is a high-performance, fully autonomous robotic line-marking system built for professional grounds teams, contractors, and sports organisations that demand perfect, repeatable accuracy.
Powered by dual GNSS positioning and industrial-grade RTK stability, the RLM01 delivers centimetre-level precision across any field. Designed for continuous, high-capacity operation, its 1 kWh battery provides exceptional runtime — capable of marking up to 12 full-size football pitches per charge.
Industrial-Grade RTK Accuracy
Dual GNSS with local base station connectivity ensures unrivalled signal stability and centimetre-level precision, even in GPS-challenging environments.
Professional Mapping System
Supplied as standard with a handheld point marker, allowing rapid, vehicle-free mapping in just minutes. Create and assign maps directly through the app.
User-Friendly Operation

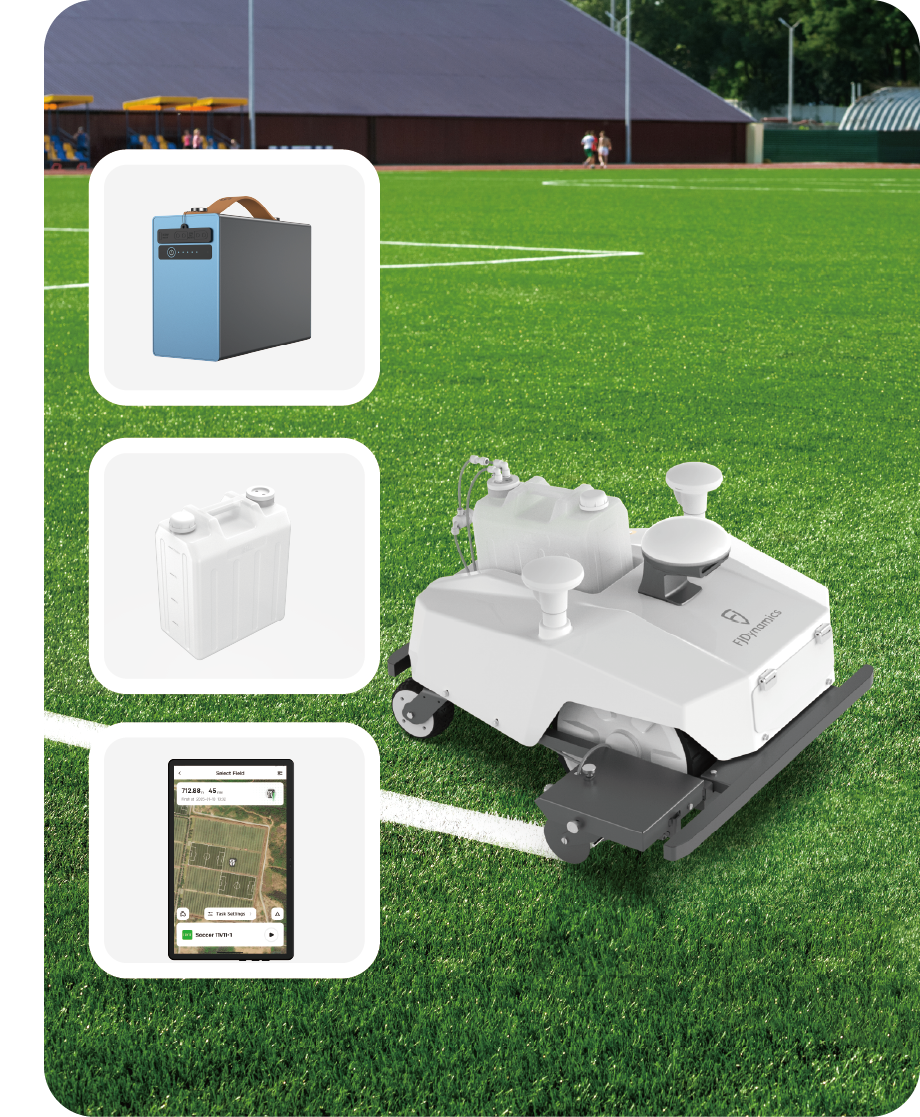

Modular construction with detachable components, simple maintenance access, and a supplied tablet for easy control via the FJD Landscaping App.
Smart, Autonomous Marking
Once mapped, the RLM01 plans, drives, and marks completely automatically – saving time, reducing labour, and guaranteeing uniform, professional results.
High-Capacity Power System
The integrated 1 kWh battery delivers up to five hours of runtime per charge. Fast-swap capability supports 24/7 marking when using spare packs.

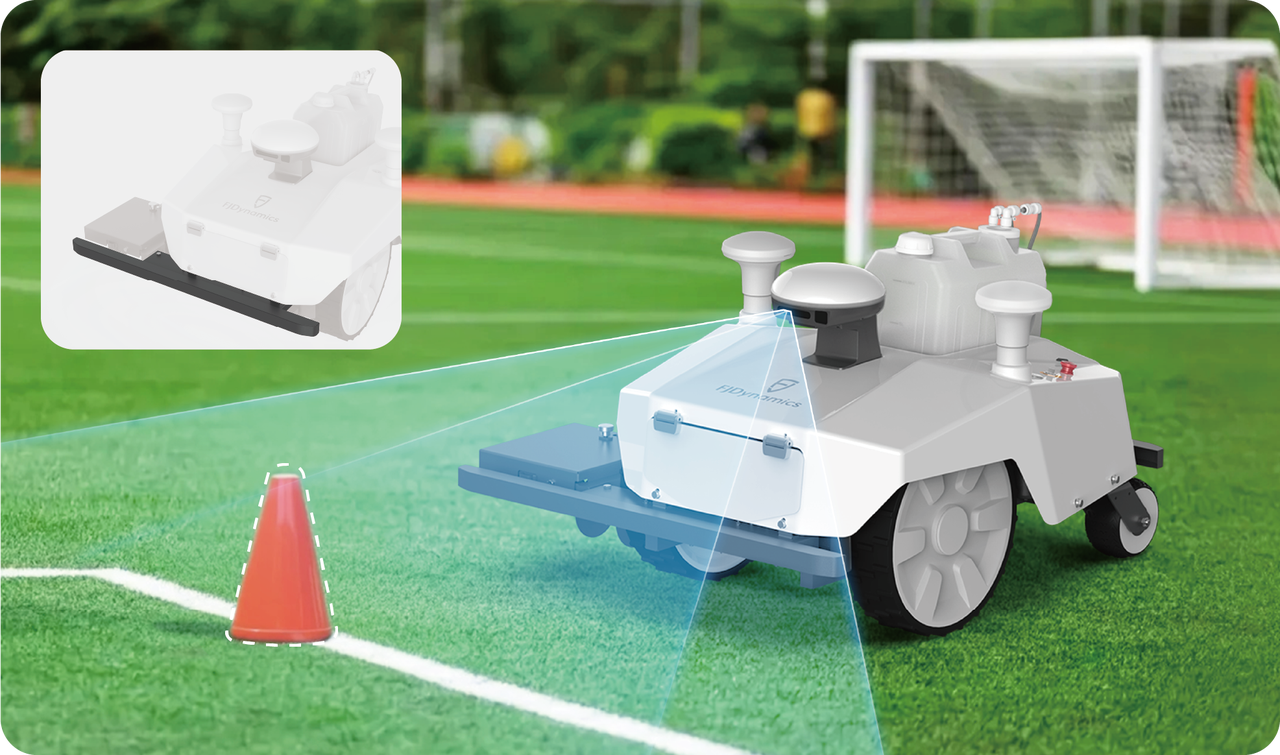

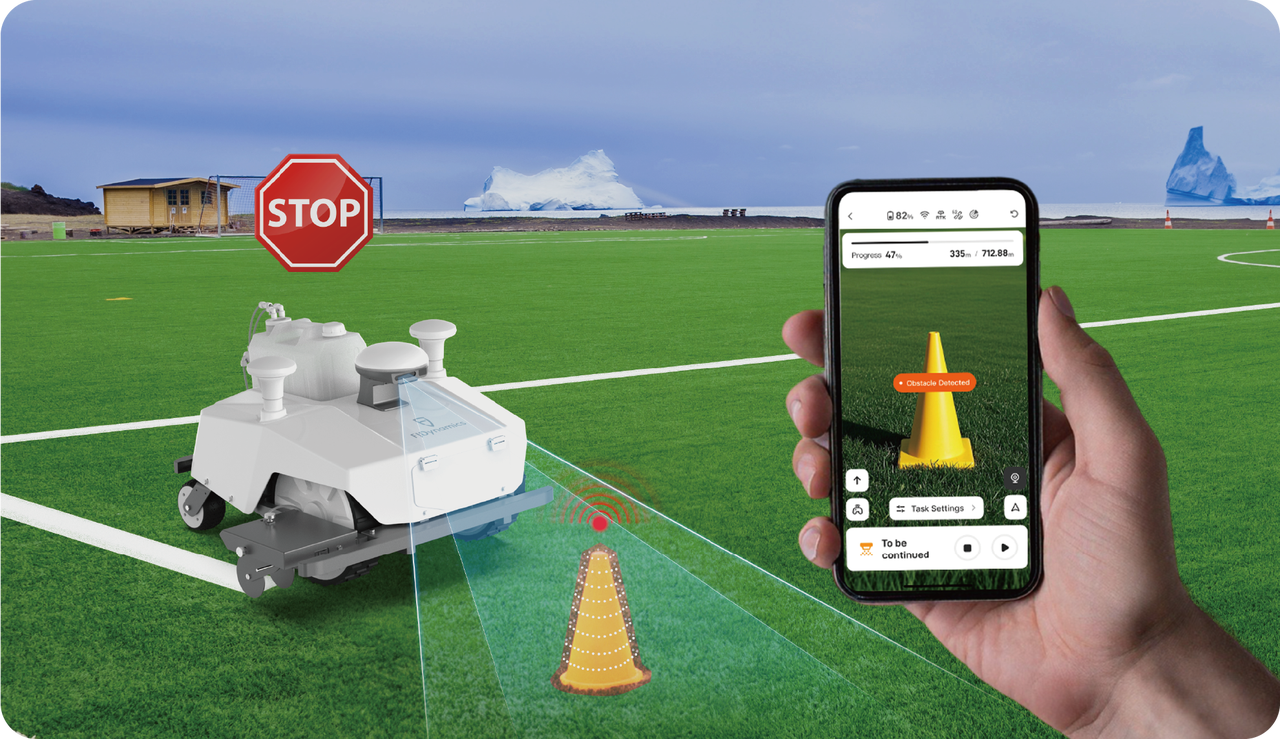

Safe & Reliable
Dual cameras and front/rear bumpers provide live obstacle detection and automatic stop, ensuring safe operation day or night.

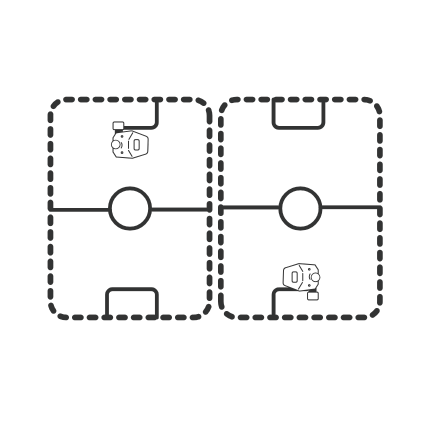

Fleet & Multi-Field Management
Manage multiple PaintMaster units simultaneously. When one field is complete, the system automatically moves to the next for maximum productivity.
Large 20 L Paint Capacity
Independent refill port and quick-change bucket design reduce downtime and make cleaning faster between jobs.
Optional Laser Kit for Millimetre-Level Accuracy
Add the FJD Laser Kit to achieve mm-level precision for professional venues or GPS-restricted locations such as under trees or near stands.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | FJD PaintMaster™ Pro RLM01 |
| Weight (Excl. Paint) | 58.6 kg |
| Dimensions | 1651 × 1372 × 1321 mm (65 × 54 × 52 in) |
| Marking Speed | 1 – 3 km/h |
| Paint Capacity | 20 L |
| Nozzle Height | 3 – 8 cm |
| Battery Capacity | 1 kWh lithium-ion |
| Runtime (per charge) | Up to 5 hours |
| Charging Time | ≈ 2 hours |
| Coverage (per charge) | Up to 12 football fields (11 v 11) |
| Positioning System | Dual GNSS + Local Base Station + FJD N10 CORS (NTRIP) |
| Mapping Tool | Handheld Point Marker (standard) |
| Control Interface | FJD Landscaping App (iOS & Android) |
| Fleet Management | Multi-robot / Multi-field control |
| Safety Features | Dual camera + front and rear bumpers |
| Laser Kit Support | Optional (mm-level accuracy) |
| Waterproof Rating | IPX5 |
| Operating Temperature | 5 – 45 °C |
| Warranty | 2 Years |
Perfect For
-
Professional groundskeeping teams
-
Multi-field sports complexes and stadiums
-
Contractors and local authorities
-
Universities and sports academies
FJD PaintMaster™ Pro RLM01 — engineered for accuracy, reliability, and all-day professional performance.
Comparison
| Feature | PaintMaster™ Pro RLM01 | PaintMaster™ Mini RLM02 |
|---|---|---|
| Target User | Professional clubs, contractors & councils | Local clubs, schools & smaller facilities |
| Accuracy | Dual GNSS RTK ( cm-level ) + optional laser kit (mm-level ) | Single RTK GNSS (cm-level ) |
| Mapping Tool | Handheld Point Marker (included) | Handheld Point Marker (optional) |
| Paint Capacity | 20 L | 8 L |
| Battery Capacity | 1 kWh | 190 Wh (2 × 95 Wh) |
| Runtime (per charge) | Up to 5 h | ≈ 1.5 h |
| Coverage (per charge) | Up to 12 fields (11 v 11) | One 11 v 11 football pitch |
| Marking Speed | 1 – 3 km/h | 2 km/h |
| Weight (Excl. Paint) | 58.6 kg | 21.85 kg |
| Fleet / Multi-Field Management | Yes | Yes |
| Obstacle Detection | Dual cameras + bumpers | Vision + bumpers |
| Laser Kit Support | Optional (mm precision) | Not available |
| App / Connectivity | FJD App (iOS & Android) | FJD App (iOS & Android) |
| Waterproof Rating | IPX5 | IPX5 |
| Operating Temp. | 5 – 45 °C | 5 – 45 °C |
| Warranty | 2 Years | 2 Years |
